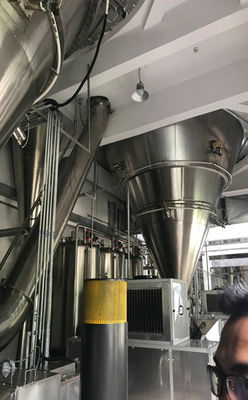

High Speed Centrifuge PSD Pharmaceutical Spray Dryer System

Product Description

PSD Series Precision pharmaceutical spray dryer


General description

In response to the characteristics of heat sensitivity, poor drying characteristics, low softening point, or strong hygroscopicity with the materials in Traditional Chinese Medicine, foodstuff and chemicals, combined with foreign advanced technology and the actual demands of domestic and oversea customers, PSD Series Precision Pharmaceutical Spray Dryer is developed by our company as a new type of spray dryer.

The plant meets the technological requirements for rapidly transforming feed into powder in production, and the drying process is carried out in clean air.

Today, this new type of precision pharmaceutical spray dryer has been adopted by many companies at home and abroad in Traditional Chinese Medicine, foodstuff and chemicals, and has won unanimous praise and trust from users.

Technical parameter

Plant Working Principles

High-speed centrifuge (rotary) spray dryer for the extract of Traditional Chinese Medicine is an application of rotary spray drying technique for special materials,as is also a drying device that uses a high-speed centrifugal atomizer to disperse the feed into a mist, fully contact the hot air, and complete the instant drying to form a powdery finished product.

Among this series of spray dryers, the special spray dryer for Traditional Chinese Medicine extracts is a spray dryer specially used to solve Traditional Chinese Medicine extracts and plant extracts. It solves the following problems in the drying of Traditional Chinese Medicine extracts in the original LPG high-speed spray dryer:

1. Powder wall deposit and the powder yield rate is low.

2. Due to long residue time of powder wall deposit, the phenomenon of powder burning and degeneration appears.

3. Difficult cleaning and inconformity with the requirement of GMP.

4. Low in output: Model LPG-150 rotary spray dryer can process 50-60kg/h of raw material liquid.

◆ The plant adopts a full sealing form, and all parts are made of stainless steel. It is equipped with three grades of filter. The filtered air reaches one hundred thousand grades. The wall-cooling device is arranged along the chamber, as makes the inner wall temperature less than 80℃,therefore the product will not be burnt or deteriorated even stays on the wall. An Air Sweeping Device (AIR BROOM)is installed inside the drying tower, and the yield of powder is raised greatly. Meanwhile it will prevent the products from being mixed or wall deposit inside the drying tower.

In view of this, according to the properties and process requirements of the extract of Traditional Chinese Medicine, our company has researched and designed the special spray dryer, and won items of china patent. It solves the traditional difficult problems in drying the extract of Traditional Chinese Medicine. The color of dried powder is good. The dried powder does not degenerate. It raises the economic benefit greatly.

Specifically, ordinary centrifugal spray drying methods can no longer meet the drying requirements of Traditional Chinese Medicine extracts with higher sugar content, especially under the conditions of the alcohol extraction process, the resulting products generally contain high sugar content and are easy to soften at high temperatures.

According to the material properties and technological requirements of Traditional Chinese Medicine extract, our company has been continuously summing up the successful experience of spray drying in the past, absorbing the advantages of similar products of the same type of domestic and foreign counterparts, repeated calculations and countless times experiments, the following technical innovations based on the original extract spray dryer were finally made:

The tower wall is equipped with a jacketed air-cooling device to ensure that the feed liquid deposited on the tower wall will not soften, melt or even carbonize due to local excessively high temperature;

The tower diameter and tower height have also been adjusted accordingly to ensure that the powder cannot reach the tower wall before getting dry, but also to ensure the residence time of the powder so as to complete low-temperature drying;

When the taper is increased, an air hammer/ pneumatic vibrator is installed on the cone, and the compressed air hammer is used to shake the cone to smoothly knock down the powder deposited on the cone;

The one-time cold air technology is used between the atomizer and the hot air distributor, that is, the top booster mechanism is adopted to prevent the material liquid from returning to the top and cool the atomizer.

These proven technical innovation measures have solved practical problems and represented another technological leap in the drying of Traditional Chinese Medicine herbal extracts. The powdery product produced by PSD series Precision Pharmaceutical Spray Dryer developed by our company has good color and no deterioration, which greatly improves the economic benefits of the plant.

Hot air distributor (that is, hot air volute and hot air distributor): through the logarithmic spiral airflow chamber, the hot air is evenly distributed in the circumferential direction; there are two guide vanes, and the wind direction and speed are adjusted by adjusting the angle of the guide vanes to realize the hot air and the atomized droplets are in optimal contact; at the same time, the hot air is evenly and spirally distributed into the drying tower, and uniformly contacted with the atomized droplets of the feed and an ideal drying effect is achieved.

The process flow chart for PSD Series Pharmaceutical Spray Dryer

Plant Features:

1. The system adopts a jacketed air-cooling system on the wall and roof of the drying chamber to prevent the material from melting and depositing on the wall.

2. The inner wall of the drying chamber adopts an air rotary purge system to make the temperature of the inner wall reach 80 ℃ to eliminate or reduce the phenomenon of wall depositing, so that when the material stays on the wall, it will not get carbonized.

3. The tower body receiving system is equipped with a product pneumatic cooling system, IE, dehumidified air-cooling technology is used to prevent the product from agglomerating, softening and absorbing moisture, as facilitates product packaging.

4. The gas entering the tower is filtered through intermediate and high-efficiency filters. Moreover, the pipeline adopts full welding and arc transition, which is convenient for cleaning, sterilization, and disassembly, fully meeting GMP requirements.

5. The one-time cold air technology is used between the atomizer and the hot air distributor, that is, the top booster mechanism is adopted to prevent the material liquid from returning to the top and cool the atomizer.

6. It meets FDA or GMP production requirements. The air cleanliness of the parts in contact with the materials is up to 100,000 grade. It is easy to clean, and multiple operating parameters are automatically controlled to ensure stable product quality.

7. The configuration of advanced industrial control system guarantees a normal operation parameters as are not influenced by the artificial and external factors. It adopts PLC control and program control system screen display.

The plant is equipped with a control system, which adopts PLC program to control the system loop; the touch screen animation displays the process flow, which is operable, and it can realize automatic fuzzy technology tracking and adjustment to the variable operation parameters; The frequency converter regulates the atomizer steadily and safely; the power regulator controls the intake air temperature with an accuracy of plus and minus 2°C, minimizing energy consumption; the inlet temperature and outlet temperature of the tower, and tower pressure can be accurately set and so on.

All these make the spray drying cycle have comprehensive reliability and reproducibility. This is ensured by high-quality materials and components, instruments for maintenance and calibration and a series of safety devices.

8. The elbow from the main drying tower to the cyclone separator is made of a one-time forming 304 stainless steel smooth pipe to prevent material accumulation, and adopts a quick-assembling clamp connection to facilitate the discharge of sewage generated during cleaning. It is suitable for multiple production requirements.

Unique technical advantages

XIANDAO Brand has been jointly shaped into a famous global leading brand by one nearly perfect & advanced industrial design concept and strong professional engineering and technical service team.

The distinctive characteristics of this brand are particularly prominent in the following aspects:

1. As an industry-renowned professional manufacturer for spray dryer and engineering company, we have a full set of core technologies with completely independent intellectual property rights, including various testing measures. We are fully capable of providing turn-key engineering services to our customers at home and abroad.

2. Our Service Purposes & Commitment :

As a well-known spray drying EXPERT in the industry area, with professional knowledge, experimental data and more than 20 years of practical experiences, we are committed to providing solutions for users, minimizing risks as much as possible, and saving the cycle which is needed for our users' products to be put into sale on the markets as early as possible..

3. The process technology and performance of our plants are completely comparable to our main competitors (ANHYDRO Corporation or Japan OKAWARA Corporation), and further more but our design is more reasonable and the technology is more advanced. In many important applications, such as rotary atomizers, automated control systems, hot air distributor constructions, and bag filter construction, our technology is completely superior to our competitors, because our design concepts root in Niro corporation under GEA Group in Germany.

4. We are also responsible to provide with the best production process to meet the conditions of the plant configuration, selection and design, guiding them to complete plant installation, commissioning, trial test and put into operation.

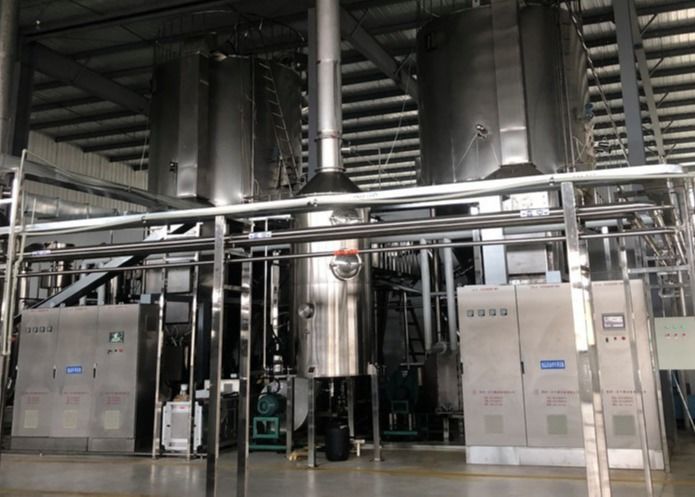

Schematic of installation for PSD Series Pharmaceutical Spray Dryer

Main scope of applications:

1. Food: Amide: amino acid, amino acid food, seasoning, protein food, egg yolk powder, immune protein powder, soy milk, refined wheat protein, soy protein, extracts, etc.

2. Sugars: glucose, syrup, syrup, starch, saccharification liquid, corn syrup, corn syrup, sugared starch liquid, pectin, acacia, caramel, a-starch, starch products, colored starch, etc.

3. Pharmaceuticals: pharmaceuticals, Chinese medicines, pesticides, inorganic medicines, enzymes, antibiotics, vitamins, etc.

4. Chemicals

Organic matter: organic catalyst, melamine resin, urea resin, phenolic resin, surfactant, vinyl chloride, polyvinyl chloride, organic compounds, lignin, RNA, yeast, pentachlorophenol, sodium phenolate, humic acid, titanate Sodium, advanced washing powder, neutral washing powder, oils, fatty acids, glycerides, etc.

5. Others

Yeast, spices, enzymes, fish/meat essence, saccharin, chlorella, coffee, whole milk powder, food additives, etc.

Optional Choice:

◆ This kind of complete equipment is manufactured based on customized design. Not all functional features provide all designs. The actual configuration should be made in accordance with the contract or signed agreement.

◆ For the main electrical components, we have international brand choices such as ABB,Siemens or Schneider or others

◆ For the material for the machine, we have choices on AISISUS304, AISISUS304L, AISISUS316,AISISUS316L,carbon steel and so on.

◆ For the control system, we have choices on push button, PLC+HMI and so on. We can design the control system as needed.

◆ We can design the explosion-proof system for our spray dryer based on customer’s request.

◆ For the fitting system for the spray dryer, we can supply it, such as feeding

system, pneumatic conveying system and so on.

◆ For the heating system for the plant, it is very flexible, and we can configure it based on the customer’s site conditions, such as steam,electricity, gas furnace and so on, all of them we can design it to match our spray dryer.

◆ If without heating system, it can as a cooler to make particles with cooling air.

◆ Complete and professional R&D equipment, scientific and reasonable product testing services, extensive and in-depth production technology exchanges, research and exploration service platforms:

The leading company can provide customers with various process tests and test verification services in a series of laboratories such as YPG, LPG, PSD, BYP, PFSD, etc., and small pilot scales or even a small number of production-type test units. These equipments have verified the feasibility of the technical application of many series of leveling, determine the best production process conditions, and provide samples for market analysis.

Notices before order:

◆ Name and physical properties of feed: solid content (or water content), viscosity, surface tension, PH value.

◆ The powder capacity after drying, allowable residual water content, particle size, allowable temperature.

◆ Production, daily working hours/shift.

◆ Available energy: steam pressure available, electric capacity, coal, oil, gas available.

◆ Control requirements: whether the inlet and outlet temperatures need to be controlled automatically.

◆ Powder collection requirements: whether to install a bag trap, and the environmental requires on exhaust gas.

◆ Other special requirements.

Paid testing service:

We welcome new and old customers to fully respond to the public, comprehensive and professional questionnaire---based on User Requirements Specification (URS), launched by our company's sales department during the preparation period for market research.

The company can design it for you on the basis of users' different material characteristics, different heating modes, different control requirements, different output demands, different product conditions, different workshop dispositions, different clean-in-place requirements(CIP), etc., so as to meet the requirements of different users.

All kinds of experimental machines are equipped in the company for the test of users to confirm the drying characteristics.
