Conductive SUS304 HZG Rotary Drying Machine
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | XIANDAO |
| Certification: | CE / UL / SGS / EAC / CR – TU |
| Model Number: | HZG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case |
| Delivery Time: | 8~18 WEEKS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 SETS PER MONTH |
|
Detail Information |
|||
| Product Name: | Rotary Kiln | Model: | HZG |
|---|---|---|---|
| MOC: | SUS316/SUS304/ CARBON STEEL ,ETC | Heating Source: | Steam / Electrical / Natural Gas / Diesel / Etc. |
| Capacity: | Customized | Power Supply: | Customized |
| Density: | Customized | Certification: | CE / UL / SGS / EAC / CR – TU |
| High Light: | SUS304 rotary drying machine,HZG rotary drying machine,SUS304 Conduction Dryer |
||
Product Description
HZG Rotary Conductive style drying machine (Rotary dryer, rotating dryer, Rotary drying machine , Rotary drying equipment )
Applications
It is suitable for drying the following raw materials,They are granules with heavy specific gravity in chemical industry, mine industry,metallurgy industry such as ore, slag, coal,metallic powder,phosphorus fertilizer,ammonia sulfate. Moreover for raw materials that are granules with special requirements, such as HP vesicant/or Foaming agent, lees,light calcium carbonate, active white earth, magnetic powder, graphite, lag of medicine and raw materials that need low temperature and in batch continuously.
Product details
| Metal material : | SUS316/SUS304/ CARBON STEEL ,ETC |
| Heating source : | Steam / electrical / natural gas / diesel / etc; |
| Capacity : | Customized |
| Power supply : | Customized |
| Density : | Customized |
| Name : | Rotary dryer/ Rotary kiln |
General Description
Mostly the machine is used in per burning of rigid magnet oxygen Pulverized fodder, it is also suitable for the cement, metallurgy and chemical industry, it is made up of main kiln body and supporting Drive set cooling pipe and supporting drive set, fuel system, electricity control secondary air set, exhaust dust and warm-up kiln body etc. The machine has function like: give an alarm for over temperature, give an alarm for over loading, auto control for working temperature,oxygen atmosphere is adjustable in the kiln etc.
Technical parameters:
|
Spec(m) |
Production Capacility (t/h) | Cylinder rotation speed (rpm) | Motor Power (kw) |
Installation Angle ( ° ) |
Discharging humidity |
| Φ1.2×6~10 | 1.5~4 | 1~10 | 7.5 | 3~5 | ≤5% |
| Φ1.4×12~18 | 2.5~6 | 1~10 | 15 | 3~5 | ≤5% |
| Φ1.8×12~18 | 5~12 | 1~10 | 22 | 3~5 | ≤5% |
| Φ2.0×12~22 | 6~15 | 1~8 | 30 | 3~5 | ≤5% |
| Φ2.4×15~20 | 9~20 | 1~8 | 37 | 3~5 | ≤5% |
| Φ2.8×20 | 20~50 | 1~8 | 55 | 3~5 | ≤5% |
| Φ3.2×25 | 30~80 | 1~6 | 75 | 3~5 | ≤5% |
| Φ3.8×30 | 40~100 | 1~6 | 90 | 3~5 | ≤5% |
| Φ4.0×35 | 50~120 | 1~4 | 110 | 3~5 | ≤5% |
| Φ4.6×40 | 65~150 | 1~4 | 132 | 3~5 | ≤5% |
| Φ5.0×40 | 80~200 | 1~4 | 160 | 3~5 | ≤5% |
Refs. Analysis of relevant process technical parameters in actual application cases:
| Type | Sequence | Sequence | Retrograde | Retrograde | Compound heating | Compound heating |
| Material type | Ore | HP Foaming Blowing Agent | Cinder of Blast furnace | Thiamine | Phosphate Fertilizer | Coal |
| Process capacity | 1000 | 466 | 15000 | 20000 | 12000 | 5000 |
| Initial water content | 30 | 13 | 6 | 1.5 | 5 | 6.5 |
| Final water content(%) | 15 | 0.3 | 1 | 0.1 | 0.1 | 0.1 |
| Mean grain size(mm) | 6.5 | 0.05 | 4.7 | 0.5-1.7 | 0.5 | 5 |
| Material accumulation severe(kg/m3) | 770 | 800 | 1890 | 1100 | 1500 | 750 |
| Hot blast rate(kg/h) | 3900 | 5400 | 10750 | 9800 | 6500 | 16000 |
| Entrance gas temperature(°C) | 600 | 165 | 500 | 180 | 650 | 570 |
| Outlet temperature of the material(°C) | 42 | 100 | 70 | 80 | 75 | |
| Heating method | Coal gas | Steam electricity heating | Heavy oil | Coal hot air furnace | Heavy oil | Heavy oil |
| Pack material coefficient | 6 | 6.3 | 7 | 7.5 | 7.8 | 18 |
| Revolution(rpm) | 4 | 4 | 3.5 | 3 | 4 | 2 |
| Gradient | 0.04 | 0.005 | 0.03 | 0.05 | 0.05 | 0.043 |
| Copy plate number | 12 | 24 | 12 | 22 |
Internal cylinder8 |
Internal cylinder 6 |
| Dryer diameter(m) | 2.0 | 1.5 | 2 | 2.3 |
Outer cylinder2 |
Outer cylinder2.4 |
| Dryer length(m) | 20 | 12 | 17 | 15 | 10 | 16 |
| Driving powder(kw) | 22 | 7.5 | 15 | 11 | 11 | 15 |
The principle of work
When the damp raw material is fed from one material, it is turned over through blades that are distributed inside the cylinder and will be distributed uniformly in the drier and contact fully with the counter current hot air. In this way, the process of heat conduction is increased.During the period of dry, under the effect of inclined blades/or angled bafflers and hot air stream,raw material can be moved to the star section of drier and discharged from discharging value.
Features
1. The motorization level of the barrel is high, and the production capacity is high;
2. The resistance that the material passes through the barrel is less, and the power consumption is low.
3. Application capability to different characters of materials is high.
4. The operation is stable, the operation fee is low, and the uniformity of product drying is good.

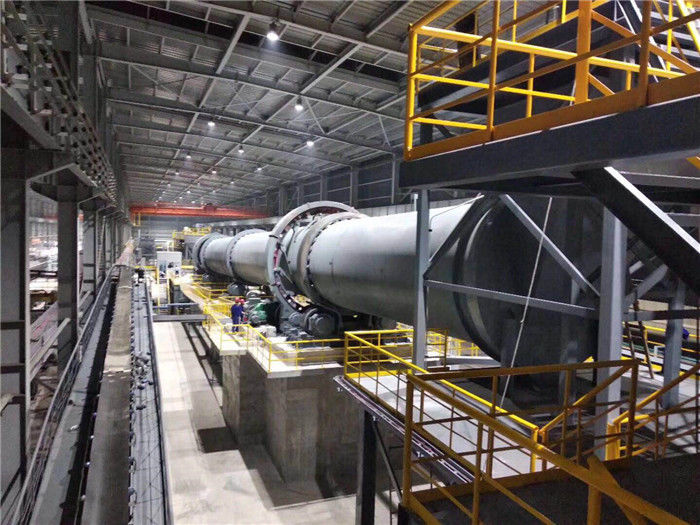

Rotary Barrel Vacuum Drying Machine Natural Gas Heating High Efficiency Images
Flow chart
