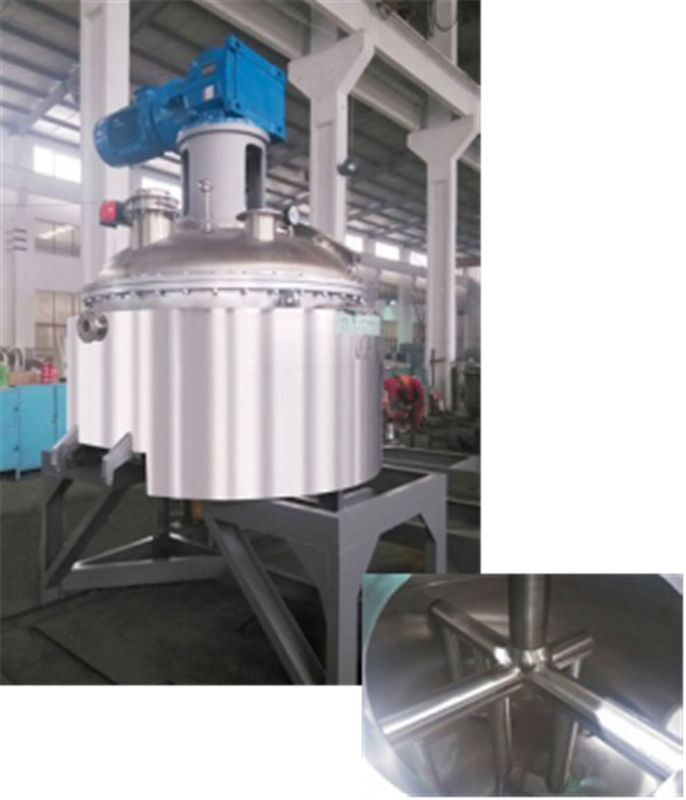

Vertical Stirring LJG 300kg / Batch Vacuum Drying Machine

LJG Vertical Stirring Vacuum Dryer

Preface

◆ Vertical mixing vacuum drying machine is a kind of vertical batch vacuum drying equipment, mainly composed of the jacketed cylinder, stirring rake tine, drive system and vacuum system (need condenser device if you need to recover the solvents). When the machine works, stirring rake tooth make wet material moving continuously in the cylinder body, contributing to the heat transfer between the cylinder wall and Materials, which makes the moisture of the material evaporate and wet gas be pumped out by the vacuum system.

◆ The equipment has a novel design, with compact structure, low power consumption and uniform drying capacity, which can also be controlled easily, widely applicable in slow heating drying, cooling of thermal material and the solvent recovery operation of crystalline and amorphous granular, powder and paste materials.

◆ The equipment is a special equipment that specially designed for the recovery the solvent from the paste, high viscosity, high

humidity material, and our company has applied for a patent for this invention. Main advantages: large batch production, high vacuum degree, convenient to maintain, and it has longer working life, better airtightness and more convenient discharging progress compared with harrow vacuum drying machine.

Features

◆ It has simple structure, is convenient to clean, and occupies a small area;

◆ It heat through Jacket, has low energy consumption and large drying capacity;

◆ The drying equipment is special for drying and colling paste material;

◆ The equipment operates in airtight environment, making it easy to recycle solvent;

◆ You can set different speed, sealing form, stirring blades, etc , according to special requirements;

◆ The equipment can coat nonmetal material inside to make sure not to take metal into the material.
