JQX Clean In Place Equipment
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | XIANDAO |
| Certification: | CE / UL / SGS / EAC / CR – TU |
| Model Number: | JQX |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case |
| Delivery Time: | 8~18 WEEKS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 SETS PER MONTH |
|
Detail Information |
|||
| Product Name: | Manually Clean In Place Equipment | MOC: | SUS316/SUS304/ CARBON STEEL ,ETC |
|---|---|---|---|
| LIQUID: | WATER ,PURE WATER ,ACID LIQUID | PUMP: | Customized |
| Volume: | Customized | Temp: | 50-120℃ |
| Size: | Customized | Certification: | CE / UL / SGS / EAC / CR – TU |
| High Light: | JQX clean in place equipment,SGS clean in place equipment,SUS316 cip systems for food industry |
||
Product Description
Manually Clean In Place Equipment For APIs Manufaturing Machine Flow Rate Auto Control
| MOC: | SUS316/SUS304/ CARBON STEEL ,ETC | LIQUID: |
WATER ,PURE WATER ,ACID LIQUID |
| PUMP: | Customized | Volume: | Customized |
| Temp: | 50-120℃ | Size: | Customized |
Product details

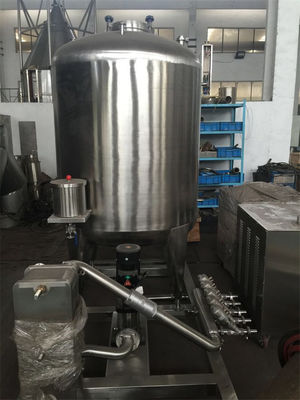

JQX series Movable Washing station, movable washer, for APIs manufaturing machine
CIP Station/Cleaning in Place for Beverage Industry
It is widely used in food beverage production enterprises which are high mechanical degree such as beverage, dairy, fruit juice, wine and so on.
Characteristics
1. CIP cleaning system has characteristics such as economic operation, low cost, compact structure, small area, simple installation and maintenance. It can in-place clean the containers and pipes and other production device effectively. The entire cleaning process are processed in confined equipment (tank containers and pipeline), thus greatly reducing the chance of secondary contamination.
2. The system can be divided into first to fourth Road according to production needs. Particularly Road 2 or higher ones can clean several district at the same times, it also can clean during the production process. Thus greatly reduced the production time of the CIP cleaning.
3. It uses U. S. Import pneumatic diaphragm to pump concentrated acid and concentrated alkali. Not only to improve the equipment in good order but also reduce the repair rate of equipment. The most important thing is reducing the operating costs.
4. Especially the automatic CIP can automatically detect, plus liquid, emissions, display and adjust to cleaning fluid. It is more in line with sanitary requirement and production environment demand of modern large-scale fluid drugs and food processing because its reliable operation, high automation, simple operation and good cleaning effect.
5. It can automatically switch process parameters and adjust cleaning time, PH, temperature and other parameters.
6. All operations can be recorded to facilitate GMP certification.
7. CIP cleaning system divided into one-piece type, dual tanks and multi tanks. There are fixed and moving.
| CIP Tank size | 1000L-10000L | |
| CIP tank type | Al k ali tank , acid tank , hot water , clean water tank , water recycle tank | |
| Cleaning recycles | Single circuit , double circuits , three circuits , four circuits | |
| Heating method | Coil pipes inside , plate heat exchanger , tubular heat exchanger | |
| Automatic types and chara cteristic | Full Automatic | 1. flow rate auto control; 2. temperature auto control; 3. auto compensate the cip liquid level; 4. auto compensate the liquid concentrate; 5. cleaning liquids auto transfer; 6. auto alarm |
After the wide absorption of advanced domestic and foreign technology, and taking the specific conditions and requirements of this industry into consideration, our company develops this simple and easy cleaning equipment. The equipment has proper structure, stable and reliable performance, and is easy to operate. Besides, it is a kind of multi-usage machine, which effectively reduces the labor intensity, optimizes production technology, and meets new version of GMP standard for the state drug production.

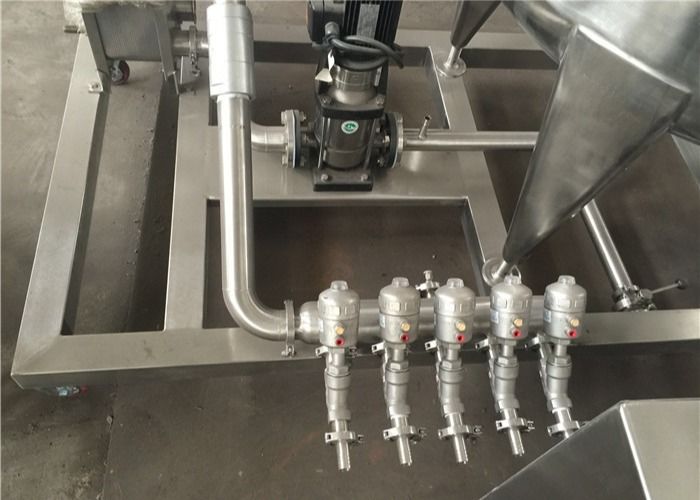

The machine consists of water tank, high-pressure pump, water distributor, Angle seat valve, control system, etc. When working, it will connect cleaning components to the cleaning point interface of corollary equipment, you need to set cleaning procedures according to the technological requirements, after confirm, it can clean the lining surface as set progress. It can also connect external high pressure water spray gun, so that the external surface and other accessories can artificially cleaned in cleaning area.
The pumping station is mainly used in the production of solid dosage for the pharmaceutical industry. It can be used together with wet mixing granulator, fluid bed dryer and granulator, fluidized bed coating machine and other ancillary equipment to realize its cleaning function at site. At the same time, it’s widely used in food, chemical industry, etc.
