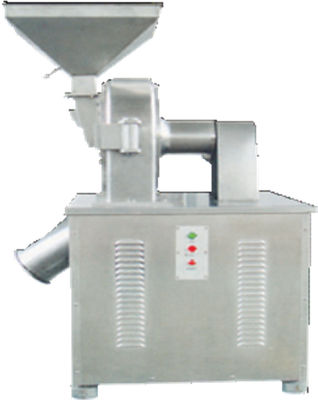

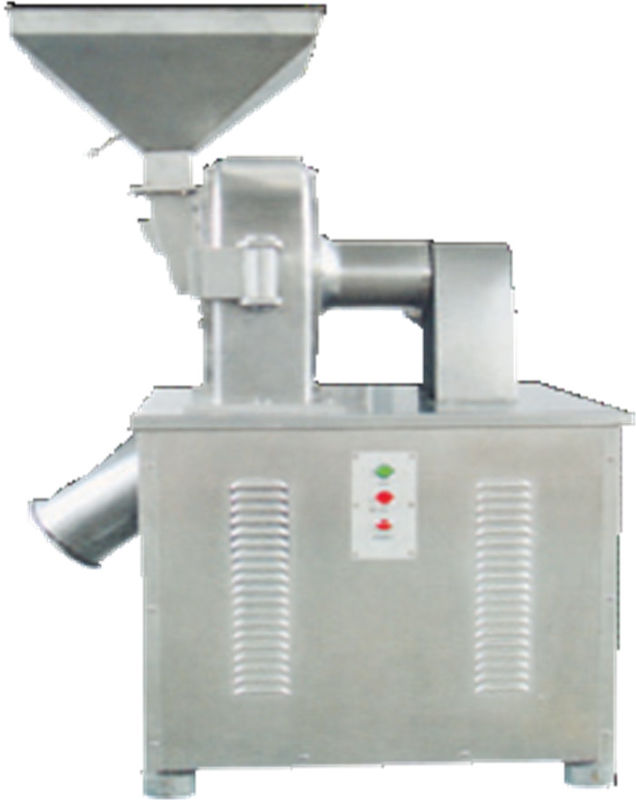

Good Crushing Effect 20B 60kg/H Grinding Pulverizer Machine
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | XIANDAO |
| Certification: | CE / UL / SGS / EAC / CR – TU |
| Model Number: | 20B 30B 40B 60B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case |
| Delivery Time: | 8~18 WEEKS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 SETS PER MONTH |
|
Detail Information |
|||
| Product Name: | 20B 30B 40B 60B Series High Effect Pin Mill/Grinding Machine | Application: | Foodstuff / Pharmaceutical |
|---|---|---|---|
| Motor: | SEW ABB SIEMENS | Productive Capacity: | 60-1500kg/h |
| Power Supply: | Customized | Document: | FAT/ IQ / OQ / PQ |
| MOC: | SUS316/SUS304/ ,ETC | Brand: | XIANDAO |
| High Light: | 60kg Grinding Pulverizer Machine,20B Grinding Pulverizer Machine,60kg pin grinding machine |
||
Product Description
20B 30B 40B 60B Series High Effect Pin Mill/Grinding Machine
Feature:
1. The machine is elaborately made of high quality austenitic stainless steel. The crushing cavity is flat and smooth without powder accumulation.
2. There is no dust during production. The machine has such features as simple and solid structure, stable running, easy cleaning and good crushing effect.
3. The crushed materials can be discharged directly from the machine grinding cavity. The granule size can be obtained by changing mesh screens of different bore diameters, and it is convenient to change the mesh screen.
4. The machine has no dead corner of sanitation and is easy to clean and maintain, meeting GMP requirements.
Inside the enclosure (crushing groove) all alveolar by precision machined so as to achieve a smooth surface, easy to clean and change the ordinary mill rough wall, easy to accumulate dust, the phenomenon is difficult to clean, the food, pharmaceutical, chemical and other production line with GMP requirements .
5. Crushed material by the centrifugal force, automatically enter the trap bag, dust from the vacuum tank was recovered by filtration bag.
6. The machine structure is simple, robust, smooth operation, the crushed material quickly and evenly, with good results.
Product details:
| Application: | Foodstuff / Pharmaceutical | Motor: | SEW ABB SIEMENS |
| Power supply: | Customized | Capacity: | 30~300kg |
| Document: | FAT/ IQ / OQ / PQ | MOC: | SUS316/SUS304/ ,ETC |
Purpose:
This machine is mainly used for chemical industry, medicine (traditional Chinese medicine), food, flavor, resin powder, powder coating and other weak electricity materials and high temperature resistant materials. It is a new generation of crushing equipment integrating crushing and dust removing.
Technical parameters:
|
Spec |
Productive capacity (kg/h) | Speed of main shaft (r/min) | Feeding granule size (mm) | Fineness of pulverization (mesh) | Grinding motor power (kw) | Fan power (kw) | Weight (kg) | Overall dimen- sion (LxWxH) (mm) | Overall dimension (set)(LxWxH) (mm) |
| 20B | 60-150 | 4500 | 6 | 60-150 | 4 | 1.5 | 250 | 550×600×1250 | 1100×600×1650 |
| 30B | 100-300 | 3800 | 10 | 60-120 | 5.5 | 1.5 | 320 | 600×700×1450 | 1200×650×1650 |
| 40B | 160-800 | 3400 | 12 | 60-120 | 11 | 1.5 | 550 | 800×900×1550 | 1350×700×1700 |
| 60B | 500-1500 | 2800 | 15 | 60-120 | 15 | 2.2 | 680 | 1000×900×1680 | 1550×1000×1750 |
Principle:
1. The machine adopts the wind-wheel high speed rotating cutter and fixed cutter for impacting, shearing and grinding.
The machine makes use of the high speed relative movement between the moveable and fixed gear plates, so as to make the materials crushed under the impact and friction of gear plates, so as to make the materials crushed under the impact and friction of gear, as well as impacts between materials.
2. In addition to having good crushing effect, the machine can produce powerful air flow inside the cavity during the crushing to discharge the heat and finished products from the crushing chamber through the mesh screen. The granule size can be determined by changing mesh screens of different bore diameters.
3. The materials after being crushed by the centrifugal force, will automatically enter the collection bag under the action of rotary centrifugal force. The dust will be recovered through the dust suction box after going through the bag filter.
Application:
The machine(set) is extensively used in chemical, pharmaceutical, food and pesticide industries for grinding dry brittle materials.
Note: the outputs in list are only for reference, due to the difference of material and required size.
Different design of component of grinding:
Type One:
Type two:
