Pharmaceutical QLM 30kg Grinding Pulverizer Machine
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | XIANDAO |
| Certification: | CE / UL / SGS / EAC / CR – TU |
| Model Number: | QLM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case |
| Delivery Time: | 8~18 WEEKS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 SETS PER MONTH |
|
Detail Information |
|||
| Product Name: | QLM Series Jet Mill | Application: | Foodstuff / Pharmaceutical |
|---|---|---|---|
| Motor: | SEW ABB SIEMENS | Capacity: | 30~300kg |
| Power Supply: | Customized | Document: | FAT/ IQ / OQ / PQ |
| MOC: | SUS316/SUS304/ ,ETC | Brand: | CE / UL / SGS / EAC / CR – TU |
| High Light: | 30kg Grinding Pulverizer Machine,QLM Grinding Pulverizer Machine,30kg jet mill machine |
||
Product Description
QLM Series Jet Mill
Principle

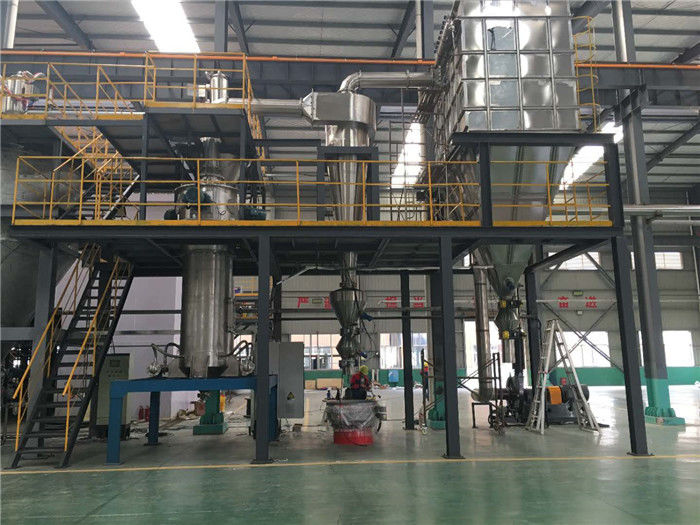

compressed air is accelerated into supersonic air flow through Laval nozzle, and then it is injected into the crushing area to fluidize the material (the air flow expands to be fluidized bed and floats and boils and collides with each other), so each particle has the same movement state. In the comminution area, the accelerated particles collide with each other at the intersection of nozzles. The crushed materials are transported to the classification area by updraft, and the fine powder meeting the particle size requirements is screened out by the horizontally arranged classification wheel, and the coarse powder failing to meet the particle size requirements is returned to the grinding area for further grinding. Qualified fine powder is collected in the high-efficiency cyclone separator along with the air flow, and the dust containing gas is filtered and purified by the dust collector and then discharged into the atmosphere.
Product details
| Application: | Foodstuff / Pharmaceutical | Motor: | SEW ABB SIEMENS |
| Power supply: | Customized | Capacity: | 30~300kg |
| Document: | FAT/ IQ / OQ / PQ | MOC: | SUS316/SUS304/ ,ETC |
Technical Specifications
| Model | QLM-I | QLM-1.5 | QLM-II | QLM-III | QLM-3.5 | QLM-IV | QLM-V |
| Feed size mm | < 3 | < 3 | < 3 | < 3 | < 3 | < 3 | < 3 |
| Product size μm | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Capacity factor | 0.024 | 0.075 | 0.16 | 0.4 | 0.5 | 1 | 3.5 |
| No. Of nozzle | 3 | 4 | 4 | 4 | 4 | 4 | 4 |
| Host size cm | φ16X50 | φ25X80 | φ35X160 | φ41X200 | φ52X280 | φ70x260 | φ102X568 |
| Filter area m2 | 3 | 10 | 16-20 | 26-42 | 42-47 | 47-60 | 170 |
| Classifying wheel motor power kw | 1.1 | 3 | 4 | 5.5 | 7.5 | 15(11) | 15(11)×3 |
| Max speed r.p.m | 18000 | 12000 | 8000 | 6000 | 6000 | 4000 | 4(5)000 |
| Air compressor pressure≥ MPa | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 |
| Air compressor air amount≥ m3/min | 3 | 6 | 10 | 20 | 20 | 40 | 120(100) |
| High pressure fan power kw | 2.2 | 同I型 | 4 | 7.5 | 同 III 型 | 18.5 | 45(55) |
| Jet mill power kw | 3.3 | 9 | 10 | 15 | 18 | 35 | 108(65) |
| Standard operation space(m) | 2×2×2 | 4×2×4 | 6×3×6 | 7×4×6 | 7×4×6 | 9×4×9 | 18×12×11 |
Note: The power of jet mill does not include air compressor; energy consumption (kWh) = power × 0.7.
Application:
nonmetal ore, electronic material, chemical industry, new material, abrasive, refractory, rare earth, ceramics, metal powder, toner, pesticide, medicine.
Features:
◇ Particle size distribution concentration: no over crushing Phenomenon & "free from over size"
◇ Stable operation after startup, high yield, qualified products from a small amount of raw materials
◇ Stable operation, high reproducibility( High reproducibility means that it is stable and can keep the same granularity every time) and reliability; military quality, durable;
◇ Fineness: D97: 3-100 μ m; serial production: 2-5000 kg / h
◇ Automatic one key start stop (optional touch screen), automatic program or manual control
◇ Good universality: various soft and hard, light and heavy materials; good particle morphology and no entrainment
◇ The main engine does not need to supplement the external air or absorb the moisture, and the flow field is stable and the quality is uniform
◇ Only need to open the plexiglass observation window of grinding chamber to change the nozzle: convenient and fast
◇ Only the clean compressed gas passes through the nozzle, so the product quality will not be affected if the wear is very light
◇ There is no dead angle of accumulated material at the bottom of the main machine, and the cleaning is complete; the tailing quick discharge device
◇ Motor is directly linked with classifying wheel (simple construction; easy maintenance; stable turn) A special design which prevents materials from penetrating the bearings
◇ Stable operating behavior which guarantees best possible constancy of fineness and fines yield
◇ The QLM series jet mills produce end products with closely particle size distributions and exact topsize limitation.
◇ The QLM series jet mills are extremely low-wear in operation and can be employed for materials with a Moh's hardness up to 9.5.
