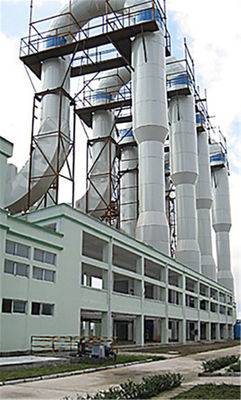

Big Capacity Continuous 20TPH Starch Air Stream Dryer
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | XIANDAO |
| Certification: | CE / UL / SGS / EAC / CR – TU |
| Model Number: | DG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case |
| Delivery Time: | 8~18 WEEKS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 SETS PER MONTH |
|
Detail Information |
|||
| Product Name: | Starch Drying Machine | MOC: | SUS316/SUS304/ CARBON STEEL ,ETC |
|---|---|---|---|
| Heating Source: | Steam / Electrical / Natural Gas Diesel / Etc | Motor: | ABB /Siemens/SEW |
| Capacity Of Starch: | 0.5-20TPH | Water Evaporation: | 5-2000kg |
| Control System: | PLC+HMI / Button Control | Brand: | XIANDAO |
| High Light: | 20TPH Air Stream Dryer,2000kg Air Stream Dryer,20TPH starch dryer machine |
||
Product Description
DG Series Air Stream Dryer For Starch
General Description
DG series Air stream dryer is the drying plant for to dry maize, potato alike and other starch material processed by wet method after dewatering process. It's also for to dry heat sensitive powder or slice state material with fast speed.

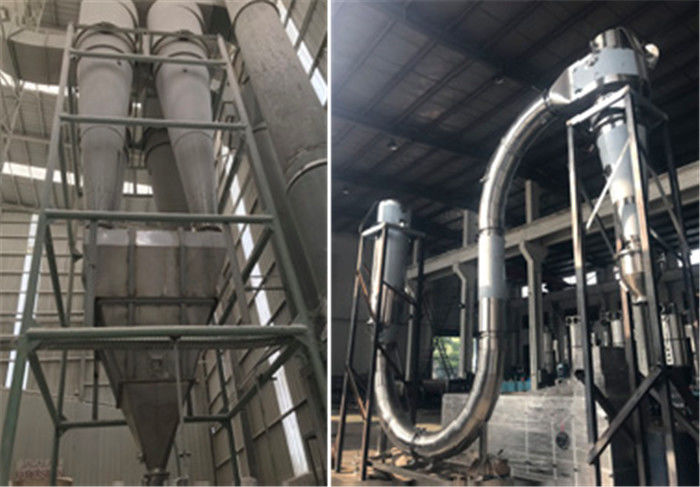

Wet material is dispersed into a stream of heated air (or gas) which conveys it through a drying duct. Using the heat from the air stream, the material dries as it is conveyed.Finished product collected is using cyclones, and/or bag filters. Typically, cyclones are followed by scrubbers or bag filters for final cleaning of the exhaust gases to meet current emission requirements.
Product details
| Material: | SUS316/SUS304/ CARBON STEEL ,ETC | Heating Source: | Steam / Electrical / Natural Gas Diesel / Etc |
| Temp.: | 100-500℃ | Water Evaporation: | 5-2000kg |
| Control System: | PLC+HMI / Button Control | Motor: | ABB /Siemens/SEW |
Product parameters
| Model | Capacity of starch t/h | Total power KW | Steam consumption Kg/Kg water | Finished starch moisture ％ |
| DG-0.5 | 0.5 | 1.8-2.0 | 12-14％ | |
| DG-0.8 | 0.8 | 21.6 | 1.8-2.0 | 12-14％ |
| DG-1 | 1 | 24.6 | 1.8-2.0 | 12-14％ |
| DG-1.2 | 1.2 | 26.6 | 1.8-2.0 | 12-14％ |
| DG-1.6 | 1.6 | 30.1 | 1.8-2.0 | 12-14％ |
| DG-2 | 2 | 47.6 | 1.8-2.0 | 12-14％ |
| DG-2.6 | 2.6 | 59.5 | 1.8-2.0 | 12-14％ |
| DG-3.2 | 3.2 | 75 | 1.8-2.0 | 12-14％ |
| DG-3.6 | 3.6 | 95 | 1.8-2.0 | 12-14％ |
| DG-5 | 5 | 123.4 | 1.8-2.0 | 12-14％ |
| DG-6 | 6 | 170 | 1.8-2.0 | 12-14％ |
| DG-10 | 10 | 223.5 | 1.8-2.0 | 12-14％ |
| DG-20 | 20 | 440 | 1.8-2.0 | 12-14％ |
Principle
1. In the dryer, high-speed hot air stream sustain raw material in the suspending state, then the material is dried. Since air stream speed is very high, and material is suspending in air stream, the heat transfer surface between air and solid is large, heat transfer rate is high, and drying time is short(usually within several seconds). It’s specially suitable for drying heat sensitive materials.
2. In drying process, clean cool air is heated by air heater, and mixed with wet starch sent by spiral feeder and material raiser. Wet starch is dried momentarily. Dry starch is discharged though centrifuge separator and rotary valve.
Feature
1. This machine combines the whirl technology with the fluidity, ejection and smashing step technologies.
2. The equipment is compact and small in size, high in production efficiency and continuous in the production. It has realized that small equipment can perform the large production.
3. The drying capacity for this machine is big but its energy consumption is low. Its heat efficiency is high.
4. The material stay time is very short. The quality of the final products is very good. The machine can be used for drying the heat sensitive materials.
5. For the negative pressure or the micro-negative pressure operation, the machine is good for its tightness and high in the efficiency so as to eliminate the environmental pollution.
6. High drying efficiency providing low energy costs
7. Continuous processing with short processing time
8. Low operator overheads and minimum maintenance costs
9. Controlled residence time enabling high temperature drying
