Siemens Motor QG 20m2 Air Stream Dryer With Fan
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | XIANDAO |
| Certification: | CE / UL / SGS / EAC / CR – TU |
| Model Number: | QG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case |
| Delivery Time: | 8~18 WEEKS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 SETS PER MONTH |
|
Detail Information |
|||
| Product Name: | QG Series Air Stream Dryer | MOC: | SUS316/SUS304/ CARBON STEEL ,ETC |
|---|---|---|---|
| Heating Source: | Steam / Electrical / Natural Gas / Diesel / Etc | Motor: | ABB /Siemens/SEW |
| Area Occupied: | 20-200m2 | Water Evaporation: | 5-2000kg |
| Control System: | PLC+HMI / Button Control | Brand: | XIANDAO |
| High Light: | 20m2 Air Stream Dryer,QG Air Stream Dryer,20m2 starch dryer machine |
||
Product Description
QG Series Air stream Dryer( Air Stream Ring Dryer)
Product details
| Material: | SUS316/SUS304/ CARBON STEEL ,ETC | Heating Source: | Steam / Electrical / Natural Gas Diesel / Etc |
| Temp.: | 100-500℃ | Water Evaporation: | 5-2000kg |
| Control System: | PLC+HMI / Button Control | Motor: | ABB /Siemens/SEW |
Technical parameters
| Specs. | Water evap. (kg/h) | Equipped power (kw) | Area occupied (m2) | Height (m) |
| QG50 | 50 | 7 | 20 | 14 |
| QG100 | 100 | 13 | 32 | 14 |
| QG200* | 200 | 21 | 40 | 15 |
| QG250 | 250 | 24 | 64 | 15 |
| QG500 | 500 | 43 | 96 | 18 |
| QG1000* | 1000 | 100 | 120 | 18 |
| QG1500* | 1500 | 150 | 200 | 20 |

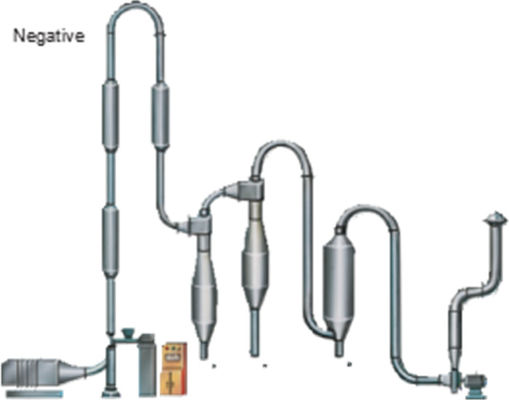

Working Principle
It is equipped with fan that has the function of dispersing.So it is suitable for heat sensitive raw material specially The impeller of fan with high speed can crush the wet and bloked raw material till dispersing During the period of dispersing,it is srirred and mixed. Then the raw material and air are flowing in parallel. It's applicable for drying raw materials that are blocked cake but only surface moisture less than 40%. If the amount to be treated is large or the moisture required of finished products is less than 60%,two grades drying can be used .If the moisture of raw materials is between 40%and 60%,the feeder is difficulty.It is necessary to adapt mixer. Through the method of mixing dry raw material into it to decrease the moisture of raw material. At this time, the total output of dryer will be decrease greatly. It is not suitable in economy. Therefore customer should remove the moisture using machinery method (centrifugal or press) so as to decrease its moisture as possible in order to guarantee the drying operation can be carried our freely.
Application
The equipment can meet different need of raw materials.Besides the mentioned raw materials in basic model,there are hymenal,A.B.C intermediate,ABS resin,white carbon black,tea,catalyst of oxailc acid,promote agent m.d.m,catalyst,deposited carbon powder,N-acetyl-sulfanily chloride,p-aminosalicylic acid, p-phthalic acid,diethyl aniline,titanium dioxide,active carbon,sodium fluosilicate,ammonium sulphate,powder of silicon glue, synthesis resin,calcium sulphate, PP resin, aureomycin, sodium polaysilicate, oral glucose, sodium sulphate, mine of sulphate,mine of phosphorus,BB blue,melting phosphorus fertilizer,tetracycline,ferric oxide,calcium carbonate,titanium/ferric mine,copper mine,powder of white potato,tail coal,stearate,zein,medicine,medical agent,ferric oxide,lees residue and so on.
Feature
1. Powerful dryer,little investment and the high efficiency of evaporating capacity .
2. Short dryer time.The finished product is separated from outside,and no pollution with high quality.
3. Heat source can be choose from steam,coal fuel,oil fuel and gas fuel hot air furnace.
Material Example in practical industrial application
| Material | Feed moisture content (%) | Product moisture content (%) | Hot air inlet temperature /℃ | Exhaust gas temperature /℃ | Product particle size /mesh |
| Aspirin | 2.5-5 | 0.2 | 80 | 60 | |
| Rose essence | 35 | 3-4 | 180 | 60 | 40 |
| Oxalic acid | 4-5 | 0.5 | 120 | 40 | 20 |
| Sodium acetate | 10 | 2-3 | 80-90 | ||
| MSG | 4-5 | 0.1 | 100 | ||
| Medicinal baking soda | 3 | 0.05 | 110 | ||
| Sodium sulfite | 5-6 | 0.05 | 100 | 40 | |
| Glucose | 16-17 | 9.1 | 90 | 40 | 20 |
| Wheat starch | 40-41 | 12-14 | 240-260 | 50-55 | |
| Tight sand | 4-5 | 0.5 | 70-90 | 50 | |
| Corn starch | 40 | 13 | 120-130 | 40 | 80-100 |
| NH | 6 | 0.5 below | 140-150 | 50 | |
| Stearic acid salt | 40-50 | 105-200 | 70-80 | 200 | |
| Sodium silicate | 12 | 1 below | 400 | 160 | |
| Benzoic acid | 25 | 0.5 | 110 | 60 | 80 |
| Sulfonated coal | 60-70 | 20-40 | 250(inlet) | ||
| Ammonium sulfate | 1.8-2.5 | 0.02-0.08 | 100-115 | 70-90 | |
| Sulfoammonium(SN) | 20 | 1 | 110-120 | 50 | 1.5 |
| Nitrogen based phenol | 10 | 0.4 | 240 | 70 | |
| Starch | 42.9 | 12.7 | 147.6 | 38.2 | 0.05 |
| Activated carbon | 205 | 4 | 455 | ||
| Fused phosphate fertilizer | 5 | 0.3 | 200 | ||
| Tea | 115 | 6.4 | 620 | ||
| M.D.M | 20 | 0.5 below | 150 | 50-80 | 100 |
| Formaldehyde | 20 | 1 | 135 | 65 | 120-150 |
| Baking soda | 3.9 | 0.2 | 180-240 | 50-70 | 0.005-0.01 |
| Microsphere catalyst | 25 | 13 | 500-580 | 130-150 | 40-50 |
| Ion exchange resin | 4-7 | 0.1-0.4 | 120 | 70-80 | 1-200 |
| Catalyst | 18-25 | 5 | 110-130 | 60 | 18-20 |
| Sodium bisulfite | 5.8 | 0.2 | 150 | 108 | |
| Crushing carbon | 13.6 | 5.3 | 330 | 100 |
