CT-C Series CGMP 480kg Hot Air Circulating Drying Oven
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | XIANDAO |
| Certification: | CE / UL / SGS / EAC / CR – TU |
| Model Number: | CT-C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case |
| Delivery Time: | 8~18 WEEKS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 SETS PER MONTH |
|
Detail Information |
|||
| Product Name: | CT-C Hot Air Circulating Drying Oven | Water Evaporation: | 5-480kg |
|---|---|---|---|
| MOC: | Carbon Steel, SUS316, SUS304, Etc | Heating Source: | Steam / Electrical / Natural Gas / Diesel / Etc |
| Temperature: | 100-500℃ | Standard: | GMP, CGMP |
| Control System: | PLC+HMI / Button Control | Brand: | XIANDAO |
| High Light: | CGMP hot air circulating drying oven,480kg hot air circulating drying oven,CGMP dry oven machine |
||
Product Description

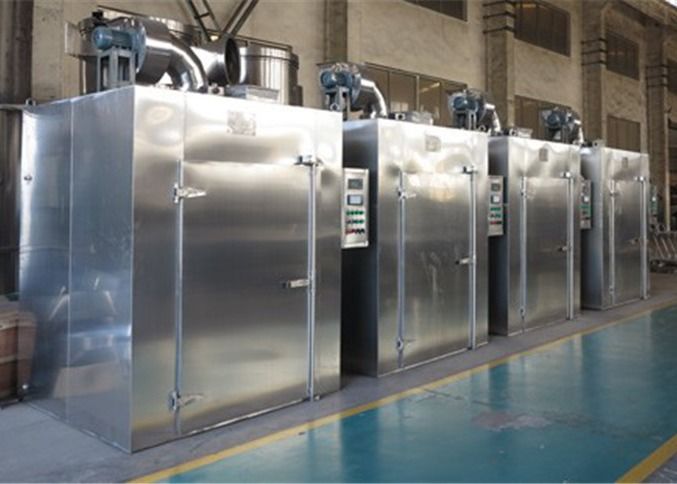

CT-C Series Hot Air Circulating Drying Oven
Description:
1. CT-C Series Drying Oven is adopt low noise, withstand high temperature axial flow blower and automatic temperature control system, all cycle system is closed, make oven thermal efficiency improved 3-7% from traditional 35-45%, the highest thermal efficiency is up to 50%.
2. The whole oven we can do stainless steel, carbon steel and contact materials parts stainless steel. It is proper for medicine, chemical, food, agricultural products, aquatic product, textile, heavy industry material heating, dehydrate and drying. For example, crude drug, Chinese medicines Yinpian, pellets, packaging bottle, dehydrated vegetable, fruit, sausage, electric element and so on.
3. The heating source can be electric or gas according to different client's need.
Product details
| Material: | SUS316/SUS304/ CARBON STEEL ,ETC | Heating Source: | Steam / Electrical / Natural Gas Diesel / Etc |
| Temp.: | 100-500℃ | Water Evaporation: | 5-480kg |
| Control System: | PLC+HMI / Button Control | Standard: | GMP;CGMP |
Laboratory Hot Air Circulating Dryer Oven Machine For Pharmaceutical / Chemical Industry
CT-C Series Pharmaceutical Hot Air Circulating Drying Oven Machine (Hot air drying oven ) (Hot air oven ) ( Hot air circulating oven, Hot air circulating drying machine )
Application
This drying oven is suitable for material and product hot solidification and dry de-watering in the pharmaceutical, chemical, food, farming side-product, aquatic product, light industries, heavy industries and others industries. Such as: raw material medicine, crude drug, prepared herbal medicine of Chinese traditional medicine, plaster, powder, particle, drinking agent, pill, packing bottle, pigment, dyestuff, dewatering vegetable, dried fruit piece, sausage, plastics, resin, electric component, baking varnish and etc.
Feature
Most hot air is circulated in the oven. The heat efficiency is high and the energy is saved. By using the forced ventilating function, there are adjustable air distribution plates inside the oven, the materials can be dried uniformly. The heating source might be steam, hot water, electricity and far infrared, with a wide selection. The whole machine is low in the noise. The operation is in balance. The temperature is controlled automatically. The installation and maintenance are easy. The application is wide. The machine can be used for drying various materials and is a versatile drying equipment.
Explanation
One reference case of application with CT-C-I
1. Options of heat source: steam, electricity, or far infrared, or both steam electricity.
2. Drying temperature: steam heating 50-130˚C, Max.140˚C.
3. Electricity and far infrared:50-300˚C.Automatic control system and computer control system on request.
4. Commonly using steam pressure 0.2-0.8MPa(2-8 bar).
5. For CT-C-I, electric heated, rated power consumption:15kW, real consumption : 5-8kW/h.
6. The special requirements should be indicated at the time of order.
7. For operation temperature of over 140˚C or less than 60˚C, please indicate when order.
8. The ovens and baking trays made by our factory are uniform in dimensions, and can be exchanged each other.
9. Baking plate dimensions:460x640x45mm.
Overall dimension Drawing of CT-C-II hot air circulating drying oven
Technical parameters
| ITEM | TYPE | ||||
| RXH-5-C | RXH-14-C | RXH-27-C | RXH-41-C | RXH-54-C | |
| Old type | CT-C-0 | CT-C-I | CT-C-II | CT-C-III | CT-C-IV |
| Drying capacity kg/bat |
25 | 100 | 200 | 300 | 400 |
| Power KW | 0.45 | 0.45 | 0.9 | 1.35 | 1.8 |
| Used steam kg/h | 5 | 18 | 36 | 54 | 72 |
| velocity(m3/h) | 3400 | 3400 | 6900 | 10350 | 13800 |
| Heat radiation area(m2) | 5 | 10 | 20 | 40 | 80 |
| Temperature difference | -2 - +2 | -2 - +2 | -2 - +2 | -2 - +2 | -2 - +2 |
| Oven tray | 24 | 48 | 96 | 144 | 192 |
| Size (L*W*H) mm | 1550*1000*2044 | 2300*1200*2300 | 2300*2200*2300 | 2300*3220*2000 | 4460*2200*2290 |
| Remarks | Single door Single dolly |
Double door Double dolly | Double door four dolly |
Double door Six dolly |
Four door Eight do |
Flow chart
Overall dimension Drawing of CT-C-II hot air circulating drying oven
FITTINGS
