HMI Control System 200kg/H RH Spray Pyrolysis Unit
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | XIANDAO |
| Certification: | CE / UL / SGS / EAC / CR – TU |
| Model Number: | RH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case |
| Delivery Time: | 8~18 WEEKS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 SETS PER MONTH |
|
Detail Information |
|||
| Application: | Chemical / Construction Material | Motor: | SEW ABB SIEMENS |
|---|---|---|---|
| Control System: | HMI | Capacity: | 200kg/h |
| MOC: | SUS316/SUS304/ CARBON STEEL ,ETC | Furnace Temperature: | 600～900℃ |
| Product Capture Method: | Special Bag-filter | Power: | Customized |
| High Light: | RH spray pyrolysis unit,200kg spray pyrolysis unit,RH Spray Heat Reactor |
||
Product Description
RH Series Spray Pyrolysis Device (Spray Heat Reactor)
Technical parameters:
|
Parameter Item |
RH-2 | RH-3A | RH-3B | RH-6 | |
| Usage | R &D/small amount production | R &D/small amount production | R &D/small amount production | small amount production | |
| Feed-handling amount | 0.6～1L/h | 1～3L/h | 1～3L/h | 2～6L/h | |
| Core tube diameter | φ200 | φ300 | φ300 | φ250 | |
| Atomizing method | Special 2-fluid nozzle | ||||
| Furnace temperature | 600～900℃ | ||||
| Product capture method | Special bag-filter | ||||
| Exhaust gas treatment | Special dust purification treatment | ||||
|
Energy |
Electricity | ～12KW | ～18KW | ～36KW | ～60KW |
| Air/orInert gas | 50L/min at 0.5MPa | 120L/min at 0.5MPa | 120L/min at 0.5MPa | 500L/min at 0.5MPa | |
| Water | Small amount | Small amount | Small a mount | Small amount | |
| Overall sizes(M) | W2.3×L1.6×H1.9 | W2.3×L1.1×H1.9 | W3.4×L1.5×H3.2 | W3.5×L2.7×H3.2 | |
| Weight | 1200Kg(With casters) | 1400Kg(With casters) | 1900Kg(With casters) | 2600Kg | |
Product details
| Application: | Chemical / construction material | Motor: | SEW ABB SIEMENS |
| Control System: | HMI | Condition: | Powder & granule |
| Capacity: | 200kg/h | MOC: | SUS316/SUS304/ CARBON STEEL ,ETC |
| Document: | FAT/ IQ / OQ / PQ | Power: | Customized |
Working principle
In the high-temperature furnace to mix liquid materials (such as the metal salt solution) spray, it instantly thermal decomposition, reaction, synthesis or calcination to obtain powder products (usually a metal oxide powder) method.
Spray Heat Reactor Characteristics
- Synthesis of multi-component system even when the particles can be micron products.
- Can trace amount of added ingredients are evenly dispersed in the raw materials.
- Compared with the powder mixing method of mixing impurities less mechanical.
- Powder products in surface activity, easy-to-sintering.
Application
Battery materials, magnetic mater ials, var ious catalysts, superconducting materials and other composite materials of high quality materials.
Product Feature
- For the production of machine at all, with gas combustion products can promote the effective thermal decomposition.
- Can spray pyrolysis device to achieve the production scale.
- A special ceramic furnace core tube, indirect heating by the electric heater.
- In the furnace temperature of about 600~900 ℃ under the conditions of operation.
- In general, the ideal way is to use high-speed centrifugal atomization type spray device,but can also choose the second solution and the slurry fluid nozzle atomization.
- Compact, small footprint; simple operation, high thermal efficiency.
- The device is made by the metal salt solution such as an instant high-quality powder.
Flowchart

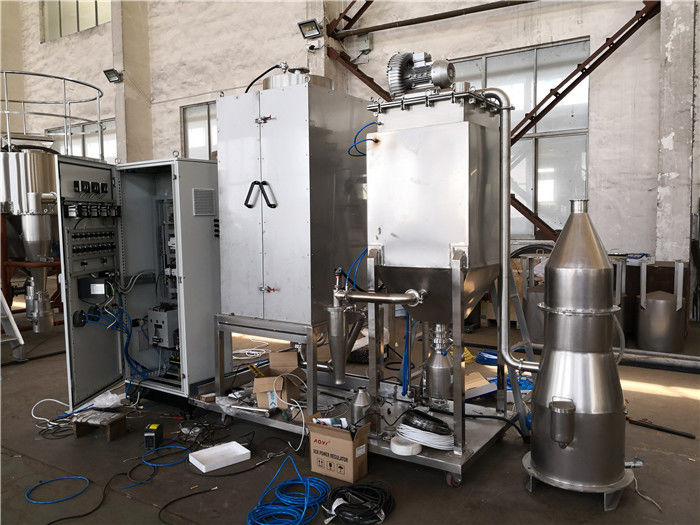

Assembling and testing
MODEL RH-3B Spray Pyrolysis Device (Spray Heat Reactor)
(Ready for delivery)
