Chemical 2500kg/h KZL High Speed Grinding Granulator
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | XIANDAO |
| Certification: | CE / UL / SGS / EAC / CR – TU |
| Model Number: | KZL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case |
| Delivery Time: | 8~18 WEEKS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 SETS PER MONTH |
|
Detail Information |
|||
| Name: | KZL Series High Speed Grinding Granulator | Application: | Foodstuff / Pharmaceutical/Chemical |
|---|---|---|---|
| Power Supply: | Customized | Condition: | Granulate |
| Motor: | SEW ABB SIEMENS | Capacity: | 20~2500kg/h |
| MOC: | SUS316/SUS304/ CARBON STEEL ,ETC | Document: | FAT/ IQ / OQ / PQ |
| Highlight: | 2500kg high speed grinding granulator,KZL high speed grinding granulator,2500kg food granulator machine |
||
Product Description

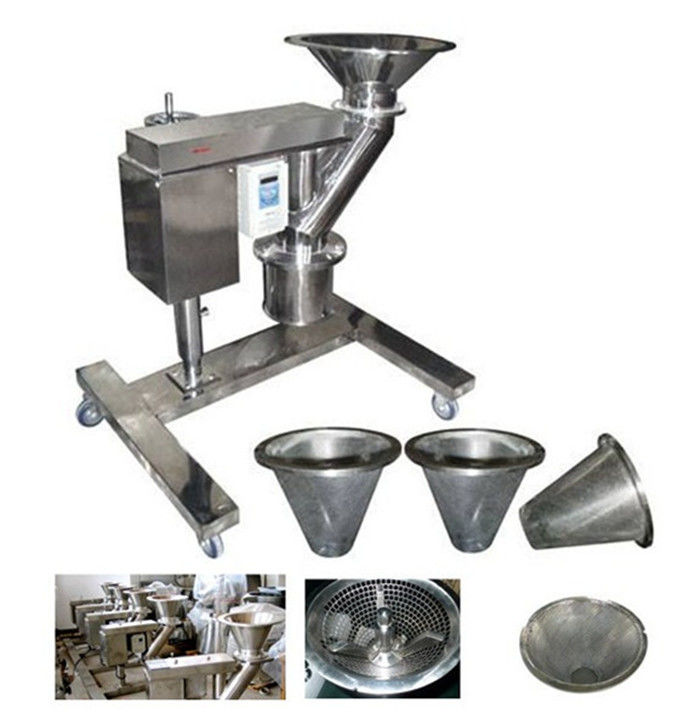

KZL Series High Speed Grinding Granulator/KZL series Fast Granule Processor
General process description
KZL Series high speed food grinding granulator is widely used in foodstuff , pharmaceutical, chemica industries with good effect. The granulator, equipped with reasonable filter net and shankpiece, can smash those easy dispersed block materials and screen them carefully via the screen with special mesh under centrifugal force. The size of granules can be adjustable. The machine can replace the Oscilating granulator/Oscillator.
1. The shape and specification of granules are varied from different process and equipment. Those granules can be formed into ones with almost same size and specification after treated through the machine.
2. The machine is made of stainless steel with surface polished, easy to dismantle and assemble as well as clean.
Technical parameters
| Spec | Stator diameter (mm) | Stator length (mm) | filter mesh diameter(mm) | Productivity (kg/h) | Power (kw) | Speed (rpm) |
Overall size L×W×Hmm |
| 80 | 80 | 185 | 1-8 | 50-100 | 0.55 | 180~1400 | 650×450×1000 |
| 100 | 100 | 98 | 1-8 | 20~150 | 1.1 | 180~1400 | 1000×800×1200 |
| 180 | 180 | 178 | 1-8 | 100~1500 | 1.5 | 175~1400 | 1060×850×1350 |
| 300 | 300 | 298 | 1-8 | 200~2500 | 3 | 200~1400 | 1100×1000×1500 |
Product details
| Application: | Foodstuff / Pharmaceutical/Chemical | Motor: | SEW ABB SIEMENS |
| Power Supply: | Customized | Condition: | Granulate |
| Capacity: | 20~2500kg/h | MOC: | SUS316/SUS304/ CARBON STEEL ,ETC |
| Document: | FAT/ IQ / OQ / PQ |
Features
◆ MODULARITY – A distinctly avant-garde, modular concept: Multi-drive allows you to alternate, depending on your production requirements, between 5 milling heads for size-specific crushing, fine grinding, de- agglomeration, or controlled sifting.
◆ FLEXIBILITY – Incomparable versatility: Multi-drive allows you to adapt your milling platform easily and quickly, to suit your current or future production requirements, regardless of your manufacturing environment or production site.
◆ PERFORMANCE – Enhanced by a factor of 5: Multi-drive proves its capabilities with the same degree of flexibility across the entire range of your processing needs, from small batch to large-scale production.
◆ SAVINGS – Enhanced return on investment and lower cost of ownership: Multi-drive integrates three milling processes into a single platform, allowing you to use up to 5 different heads and reduce investment costs by 70%；
◆ In operation, there is less heat and dust in the system.
The fixed mesh screen is made of stainless steel plate, not easy to be damaged.
When the gap between crushing knives and mesh screen can be adjusted.
Most suitable for viscous, gummy, heat-sensitive and wet materials.
Applications
◆ The machine is suitable for granule crushing and processing for Chinese Traditional Medicine and Western medicine, foodstuff, chemical pigments and feed-stuff industry and etc.
Specifically, the equipment has the following processing functions:
◆ Make dry or wet granule uniform
◆ Crush and granulate blocks;
◆ Make granule from wet material;
◆ Crush heat sensitivity raw materials.
Special note: Not all materials in the above scope can be milled by this equipment.
Diverse usage possibilities ranging from stand-alone to in-line, as well as integration in complete installations Clear, GMP-capable concept for smooth, reproducible production including scale-up High level of production safety due to certified ATEX construction for Zone 0/20 and a MIE range down to > 1 mJ High level of operational safety for containment requirements up to OEB 5 (< 1 μg/m3 ) Easy and quick cleaning - Washing in place (WIP), SIP optionally available Ultimate production flexibility permitted by the modular design, which enables milling heads to be changed within two minutes Versatile usage due to a large selection of milling elements, which can be changed easily and quickly Energy input reduced and optimised, guaranteeing reduced
