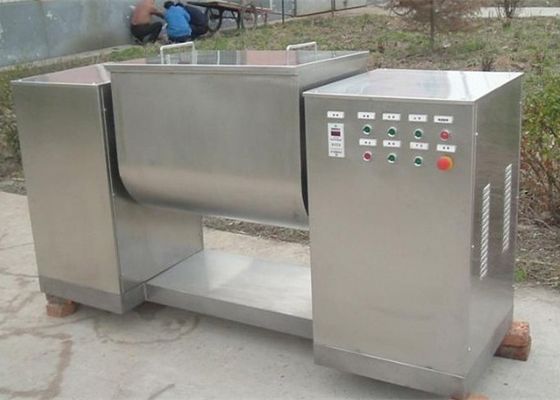

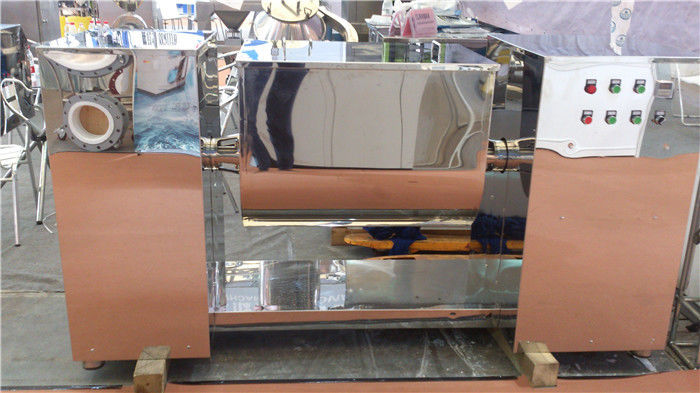

SUS304 Food Mixing Machine
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | XIANDAO |
| Certification: | CE / UL / SGS / EAC / CR – TU |
| Model Number: | CH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case |
| Delivery Time: | 8~18 WEEKS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 SETS PER MONTH |
|
Detail Information |
|||
| Product Name: | CH Series Guttered Mixing Machine | Application: | Foodstuff / Pharmaceutical |
|---|---|---|---|
| Capacity: | 2~1000L | Volume: | 5-2000L |
| MOC: | SUS316/SUS304/ ,ETC | Motor: | SEW ABB SIEMENS |
| Control System: | PLC+HMI / Button Control | Power Supply: | Customized |
| Highlight: | SUS304 Industrial Mixing Machine,XIANDAO Industrial Mixing Machine,SUS304 food mixing machine |
||
Product Description
Dry Powder Guttered Industrial Blending Equipment , Industrial Mixer Grinder Machine
SUS304 SUS316L CH Series Guttered Mixing Machine (guttered mixer) Industrial Mixing Machine
CH type Guttered mixer is widely used for mixing powder or wet raw materials and can make the main and auxiliary raw materials with different proportion uniform.
Characteristics:
The places where contact the raw materials are made of stainless steel.The gap between blades is small and there is no dead corner. At the ends of stirring shaft,there are seal devices.It can prevent from the raw material leakage.
| Application: | Foodstuff / Pharmaceutical | Motor: | SEW ABB SIEMENS |
| Control System: | PLC+HMI / Button Control | Capacity: | 2~1000L |
| Volume: | 5-2000L | MOC: | SUS316/SUS304/ ,ETC |
| Document: | FAT/ IQ / OQ / PQ | Power supply: | Customized |
Application:
It is widely used for pharmaceutical,chemical,foodstuff and so on industries.
Technical parameters:
| MODEL | 50 | 100 | 150 | 200 | 300 | 400 | 500 | 600 |
| Paddle shape | S single paddle | S single paddle | S single paddle | S single paddle | S single paddle | S single paddle | S single paddle | S single paddle |
| Working volume L | 50 | 100 | 150 | 200 | 300 | 400 | 500 | 600 |
| mixing speed r/min | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 |
| Stir angle ° | < 105 | < 105 | < 105 | < 105 | < 105 | < 105 | < 105 | < 105 |
| Mixing power kw | 1.5 | 2.2 | 3 | 4 | 5.5 | 5.5 | 7.5 | 11 |
| Dumping power kw | 0.37 | 0.55 | 0.55 | 0.75 | 1.1 | 1.1 | 1.5 | 2.2 |
| Weightkg | 280 | 350 | 410 | 450 | 520 | 580 | 680 | 750 |
| Overall size L× W× Hmm | 1200× 500 × 950 | 1400× 580 × 1000 | 1600× 600 × 1150 | 1700× 650 × 1200 | 1800× 700 × 1250 | 2100× 750 × 1250 | 2250× 800 × 1300 | 2400× 850 × 1350 |
1. It is very suitable for mixing powder or powder with liquid by small batch.
2. The control system has more choices, such as push button, HMI+PLC and so on
3. The feeding system for this mixer can be by manual or pneumatic conveyor or vacuum feeder or screw feeder and so on.
1. For the feeding system, you can choose vacuum feeder or negative feeding system or manual type.
2. For the cleaning, you can choose simple type (spray gun or nozzle), also you can choose WIP or SIP.
3. For the control system, there are push button and HMI+PLC for your choice.
4. Machine material :AISISUS304 , AISISUS304L, carbon steel , AISISUS316L, AISISUS316L and other material .
