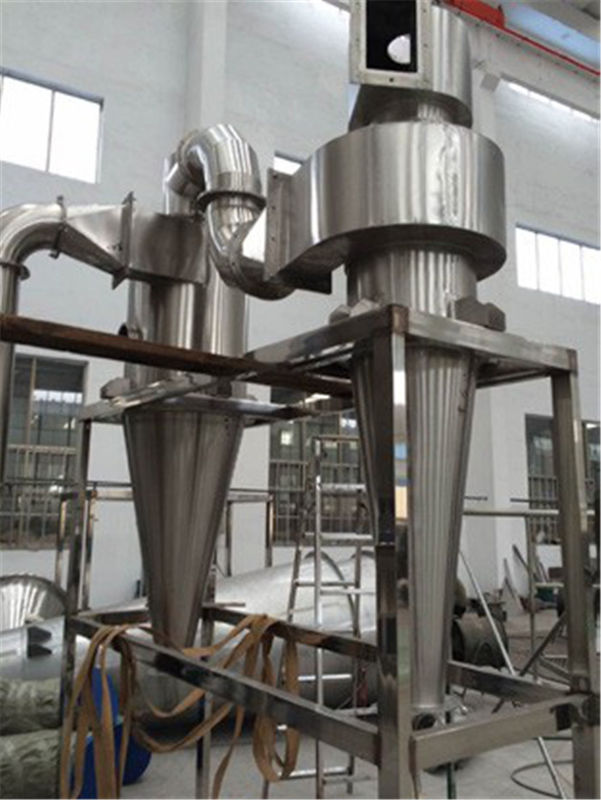

2000kg Air Stream Dryer
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | XIANDAO |
| Certification: | CE / UL / SGS / EAC / CR – TU |
| Model Number: | JG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case |
| Delivery Time: | 8~18 WEEKS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 SETS PER MONTH |
|
Detail Information |
|||
| Product Name: | JG Series Air Stream Dryer( Air Stream Ring Dryer) | MOC: | SUS316/SUS304/ CARBON STEEL ,ETC |
|---|---|---|---|
| Heating Source: | Steam / Electrical / Natural Gas / Diesel / Etc | Motor: | ABB /Siemens/SEW |
| Temperature: | 100-500℃ | Water Evaporation: | 5-2000kg |
| Control System: | PLC+HMI / Button Control | Brand: | XIANDAO |
| Highlight: | 2000kg Air Stream Dryer,SUS316 Air Stream Dryer,SGS Air Stream Dryer |
||
Product Description
JG Series Air stream Dryer( Air Stream Ring Dryer)
Product description
JG series airflow dryer is especially suitable for processing wet materials with large moisture content in paste form, as well as materials that cannot be dried by other airflow drying methods.
Technical parameters
| moisture to be evaporated(kg/h) (calculated based on the surface moisture) |
Equipped power(kw) | area occupied (m2) |
Height(m) | |
| JG 50 | 50 | 10 | 20 | 9 |
| JG 100 | 100 | 20 | 32 | 11 |
| JG 200* | 200 | 31 | 40 | 11 |
| JG 250 | 250 | 32 | 64 | 13 |
| JG 500* | 500 | 54 | 96 | 13 |
| JG 1000* | 1000 | 135 | 120 | 15 |
| JG 1500* | 1500 | 175 | 200 | 16 |
Product details
| Material: | SUS316/SUS304/ CARBON STEEL ,ETC | Heating Source: | Steam / Electrical / Natural Gas Diesel / Etc |
| Temp.: | 100-500℃ | Water Evaporation: | 5-2000kg |
| Control System: | PLC+HMI / Button Control | Motor: | ABB /Siemens/SEW |
Principle
Air stream dryer can remove moisture from the surface of raw materials of granules or powder that are easy to dehydrate.Under the air stream drying process;the quality of finished products can be controlled to the best because of raw material stays a short time.The dryer of our factory is developed on the basis of basic spec to add a reinforced device of steeples speed exchange.When the humidity raw material is fed through screw,it is mixed with air fully and is broken and pushed by rotating knives,the surface of raw material is broken to fine granule.It moves to the outlet at the same time of drying.Finally it enters into drying pipe under the absorbing of air force,it is dried further there.The humid and heavy granule that is not absorbed by air is broken and dried continuously till entering the drying pipe.
