Foodstuff Particle Hopper 20kg Industrial Lifting Equipment
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | XIANDAO |
| Certification: | CE / UL / SGS / EAC / CR – TU |
| Model Number: | YS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case |
| Delivery Time: | 8~18 WEEKS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 SETS PER MONTH |
|
Detail Information |
|||
| Product Name: | YS Series Particle Hopper Lifting Machine | COM: | SUS316/SUS304 |
|---|---|---|---|
| Capacity: | 20-500kg/batch | Motor: | ABB/ SIEMENS /SEW |
| Feature: | The Structure Is Reasonable, Adopting Double Hoisting Device | Application: | Mixing Material |
| Principle: | The Mixing Body (material Vessel) | Certification: | CE / UL / SGS / EAC / CR – TU |
| Highlight: | 20kg Industrial Lifting Equipment,SUS304 Industrial Lifting Equipment,20kg lifting equipment food industry |
||
Product Description
YS Series Particle Hopper Lifting Machine For Foodstuff Industry
Technical parameters:
| Spec | Capacity (kg) | Product container weight(empty)(kg) | Motor power (kW) | Lifting speed (m/min) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
| YS 60 | 150 | 85 | 1.1 | 0~4 | 4000 | 3900 | 3700 | 2200 | 1400 | 1095 |
| YS 120 | 250 | 120 | 1.1 | 0~4 | 4000 | 3900 | 3700 | 2200 | 1400 | 1290 |
| YS 200 | 350 | 160 | 2.2 | 0~4 | 4000 | 3900 | 3700 | 2200 | 1600 | 1495 |
| YS 300 | 500 | 220 | 3.0 | 0~0.35 | 4000 | 3900 | 3700 | 2200 | 1700 | 1690 |
| YS 500 | 750 | 250 | 3.0 | 0~3 | 4000 | 3900 | 3700 | 2200 | 1800 | 1890 |
Product Detail:
| COM: | SUS316/SUS304 | Application: | Mixing material |
| Motor: | ABB/ SIEMENS /SEW | Feature: | The Structure Is Reasonable, Adopting Double Hoisting Device |
| Principle: | The Mixing Body (material Vessel) | Capacity: | 20-500kg/batch |
Principle

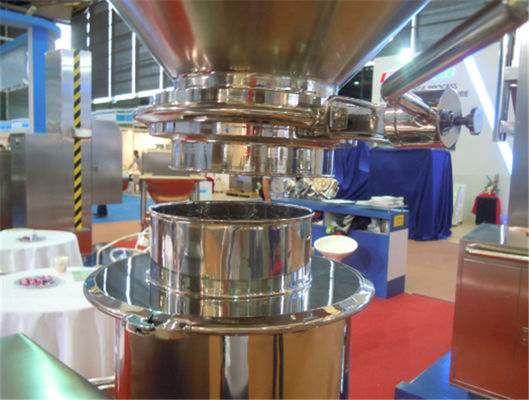

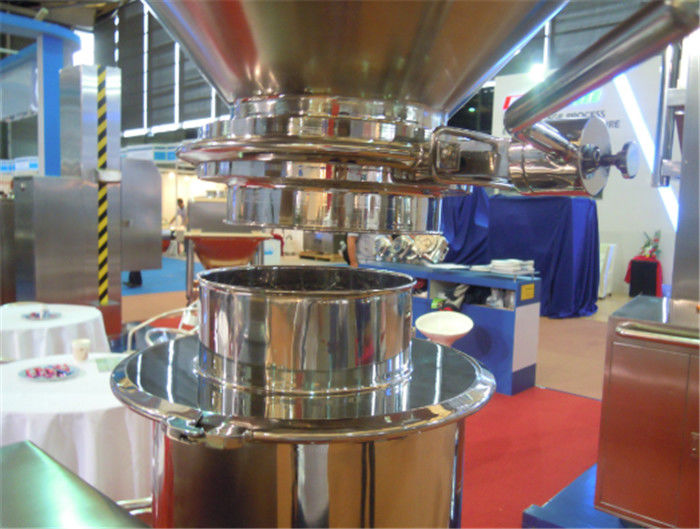

This machine is mainly composed of a chassis, upright, lift system, turning system. When work , it can lock the bowl of FL, PGL, GFG and FG with the cone adapter. Start the lift button, bin lifting; turn button, you can turn 180 degrees. Loosen the brake, horizontal rotating column to the process requirements, and bin to working height decreased, then open the valve, so that the material is transferred to the next process.
Features
This machine is designed after our widely absorbing foreign advanced technology and combining the successful researches and specific conditions.
① The machine has reasonable structure and stable performance, and it has no dead angles and exposed screws, besides, it’s also convenient to operate.
② The machine is equipped with anti misoperation device discharge valve, which makes it safe enough in production, and it is easy to disassemble and clean.
③ And to control dust and cross pollution effectively, optimize the production process, in full compliance with the GMP requirement of pharmaceutical production.
Besides, it has high safety performance, equipped with multiple safety protection, such as rotating brake, and safety lock in the material discharging position.
Sketch map
Application
It’s designed to meet GMP standards;
Integrated with FL, PGL, GFG and FG series of Fluid bed to realize dust-free discharge.
