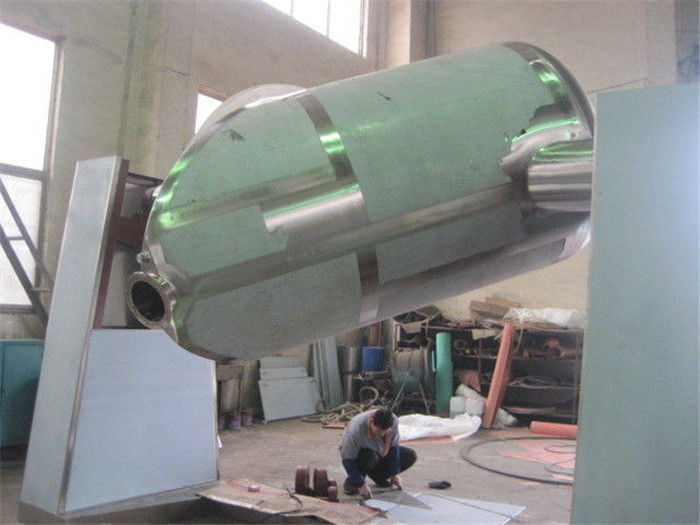

No Dead Corner ZKH V 5000L Industrial Mixing Machine
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | XIANDAO |
| Certification: | CE / UL / SGS / EAC / CR – TU |
| Model Number: | ZKH(V) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case |
| Delivery Time: | 8~18 WEEKS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 SETS PER MONTH |
|
Detail Information |
|||
| Product Name: | ZKH(V) Series Mixing Machine | Application: | Foodstuff / Pharmaceutical |
|---|---|---|---|
| Capacity: | 25~5000L | Volume: | 50-10000L |
| MOC: | SUS316/SUS304/ ,ETC | Motor: | SEW ABB SIEMENS |
| Control System: | PLC+HMI / Button Control | Power Supply: | Customized |
| Highlight: | 5000L Industrial Mixing Machine,ZKH V Industrial Mixing Machine,5000L mixing equipment in pharmaceutical industry |
||
Product Description
Chemical Powder Industrial Mixing Machine Multi Direction Rotoray Heavy Duty
SUS304 SUS316L ZKH(V) Series Mixing Machine (mixer) Industrial Mixing Machine for pharmaceutical industry
Description
This machine is suitable for mixing two or more of raw material powder or granule. It is widely used for pharmaceutical industry, chemical industry, foodstuff industry and so on.
The structure of this machine is simple. Its mixing efficiency is high and no dead corner. It is made of stainless steel. It’s inner and outer wall is processed through polishing. Its scope of application is wide. The stirrer can be equipped by the requirements of raw materials that contain fine powder, block and certain moisture as request.
TECHNICALPARAMETERS
|
Item Model |
Total Volume L |
Working Volume L |
Feeding Capacity kg |
Rotating Speed rpm |
Power kw |
Weight kg |
| 0.05 | 50 | 25 | 15 | 25 | 0.55 | 500 |
| 0.15 | 150 | 75 | 45 | 20 | 0.75 | 650 |
| 0.3 | 300 | 150 | 90 | 20 | 1.1 | 820 |
| 0.5 | 500 | 250 | 150 | 18 | 1.5 | 1250 |
| 1 | 1000 | 500 | 300 | 15 | 3 | 1800 |
| 1.5 | 1500 | 750 | 450 | 12 | 4 | 2100 |
| 2 | 2000 | 1000 | 600 | 12 | 5.5 | 2450 |
| 3 | 3000 | 1500 | 900 | 9 | 5.5 | 2980 |
| 4 | 4000 | 2000 | 1200 | 9 | 7.5 | 3300 |
| 5 | 5000 | 2500 | 1500 | 8 | 7.5 | 3880 |
| 6 | 6000 | 3000 | 1800 | 8 | 11 | 4550 |
| 8 | 8000 | 4000 | 2400 | 6 | 15 | 5200 |
| 10 | 10000 | 5000 | 3000 | 6 | 18.5 |
6000 |
| Application: | Foodstuff / Pharmaceutical | Motor: | SEW ABB SIEMENS |
| Control System: | PLC+HMI / Button Control | Capacity: | 25~5000L |
| Volume: | 50-10000L | MOC: | SUS316/SUS304/ ,ETC |
| Document: | FAT/ IQ / OQ / PQ | Power supply: | Customized |
Feature
ZKH(V) mixing machine (v-mixer, V-mixing machine ,v-mixing equipment, v -blender, v-blending machine, V-blending equipment) is with features as bellow:
1. The structure of mixing barrel is unique.
2. The mixing efficiency is high, and there is no dead angle.
3. The barrel is made of stainless steel and its internal walls are polished.
4. The outside appearance is beautiful. The mixing is uniform, with wide application, meeting GMP standard.
5. The feeding system for the mixer has more choice, such as vacuum feeding system, screw feeding system and other kinds of feeding systems. It can be designed based on the customer specific conditions.
6. Control system has more choice, such as push button, HMI+PLC and so on.
