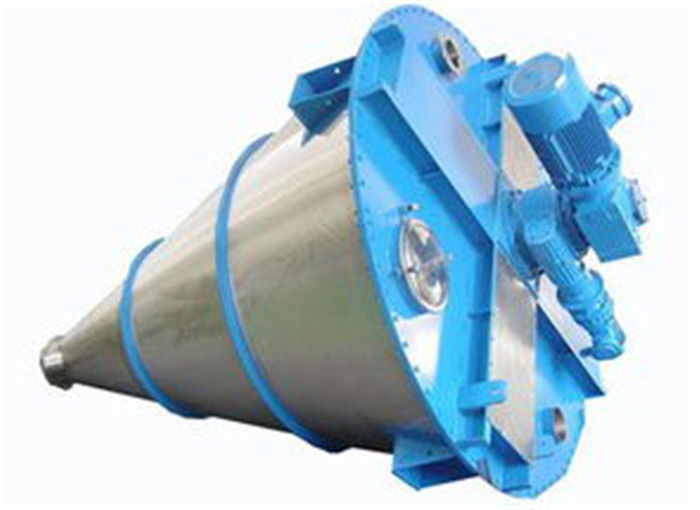

Pharmaceutical Industry DSH 6000L Double Screw Cone Mixer
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | XIANDAO |
| Certification: | CE / UL / SGS / EAC / CR – TU |
| Model Number: | DSH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case |
| Delivery Time: | 8~18 WEEKS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 SETS PER MONTH |
|
Detail Information |
|||
| Product Name: | DSH Series Double Screw Cone Mixing Machine | Application: | Foodstuff / Pharmaceutical |
|---|---|---|---|
| Capacity: | 30~6000L | Volume: | 50-10000L |
| MOC: | SUS316/SUS304/ ,ETC | Motor: | SEW ABB SIEMENS |
| Control System: | PLC+HMI / Button Control | Power Supply: | Customized |
| Highlight: | 6000L double screw cone mixer,DSH double screw cone mixer,6000L pharmaceutical mixing machine |
||
Product Description
DSH Series Double screw cone Mixing Machine (Mixer) / Industrial Baking Food Mixers And Blenders Double Screw Cone
Product details
◆ DSH Double cone screw mixing machine (double screw cone mixer, Nauter mixer) is new type high-efficiency and precise mixer, it's suitable for mixing the powder state materials in the pharmaceutical, chemical, food, instant soluble and other industries.
◆ The machine structure is reasonable and its external appearance is beautiful. All the sections of contacting the materials use the stainless steel.
| Application: | Foodstuff / Pharmaceutical | Motor: | SEW ABB SIEMENS |
| Control System: | PLC+HMI / Button Control | Capacity: | 30~6000L |
| Volume: | 50-10000L | MOC: | SUS316/SUS304/ ,ETC |
| Document: | FAT/ IQ / OQ / PQ | Power supply: | Customized |
Technical parameters:
| Model | Whole volume(m³) |
Load factor /Feed rate |
Installed power(KW) | Operational condition & Time of mixing (min) |
Outer dimension(mm) |
Weight(kg) |
| DSH-0.1 | 0.1 | 0.4-0.6 | 1.5 |
Normal temp.& pressure Dust seal;
4~10 Special material to be determined by trial |
1569×Φ702 | 250 |
| DSH -0.3 | 0.3 | 0.4-0.6 | 2.2 | 1929×Φ920 | 550 | |
| DSH -0.5 | 0.5 | 0.4-0.6 | 3 | 2322×Φ1124 | 660 | |
| DSH -1.0 | 1 | 0.4-0.6 | 4 | 2869×Φ1480 | 1200 | |
| DSH -1.5 | 1.5 | 0.4-0.6 | 5.5 | 3140×Φ1633 | 1350 | |
| DSH -2.0 | 2 | 0.4-0.6 | 5.5 | 3489×Φ1816 | 1500 | |
| DSH -3.0 | 3 | 0.4-0.6 | 7.5 | 3747×Φ2210 | 2300 | |
| DSH -4.0 | 4 | 0.4-0.6 | 11 | 4362×Φ2280 | 2520 | |
| DSH -5.0 | 5 | 0.4-0.6 | 15 | 4576×Φ2402 | 3000 | |
| DSH -6.0 | 6 | 0.4-0.6 | 15 | 4900×Φ2582 | 3150 | |
| DSH -8.0 | 8 | 0.4-0.6 | 18.5 | 5405×Φ2805 | 4500 | |
| DSH -10 | 10 | 0.4-0.6 | 20.7 | 5795×Φ3018 | 5500 | |
| DSH -15 | 15 | 0.4-0.6 | 24.2 | 6475×Φ3450 | 6600 | |
| DSH -20 | 20 | 0.4-0.6 | 41 | 7535×Φ3805 | 7000 | |
| DSH -25 | 25 | 0.4-0.6 | 41 | 7995×Φ4078 | 8500 | |
| DSH -30 | 30 | 0.4-0.6 | 52.5 | 8385×Φ4330 | 9200 |
Features:
1. The machine structure is reasonable and its external appearance is beautiful. All the sections of contacting the materials use the stainless steel.
2. The feeding system for this mixer can be by manual or pneumatic conveyor / negative feeding system or vacuum feeder or screw feeder and so on
3. For the cleaning, you can choose simple type (spray gun or nozzle), also you can choose WIP or SIP.
4. For the control system, there are push button and HMI+PLC and so on.
5. Material for the machine: ISI 304L, AISI SUS304, carbon steel, AISI SUS316L, AISI SUS316 and other materials.
6. The whole machine features novel design, compact structure, and good appearance, the evenness of mixing reaches 99% , and the volume charge coefficient reaches 0.8.
7. Low rotating height, smooth running, reliable performance, easy operation.
8. Highly polished inner and outer surfaces of the barrel, no dead comer, easy to discharge materials, easy to clear, no cross contamination. Conforming to the requirement of GMP.
Applications:
The machine is a new type high-efficient and precise mixer, it's suitable for mixing the powder state materials in the pharmaceutical, chemical, food, instant soluble and other industries.
