7000000kcal Oil Fired Hot Air Furnace Auxiliary Equipment
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | XIANDAO |
| Certification: | CE / UL / SGS / EAC / CR – TU |
| Model Number: | JRF/RLQ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden case |
| Delivery Time: | 8~18 WEEKS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 SETS PER MONTH |
|
Detail Information |
|||
| Product Name: | Oil Burnt Hot Air Furnace | Material: | SUS316/SUS304/ CS, Etc. |
|---|---|---|---|
| Heating Source: | Steam / Natural Gas / Diesel / Etc; | Temp: | 120-700℃ |
| Capacity: | 300,000-7,000,000kcal | Control: | HMI & BUTTON |
| Burner: | Customized | Certification: | CE / UL / SGS / EAC / CR – TU |
| Highlight: | 7000000kcal Auxiliary Equipment,SGS oil fired hot air furnace,7000000kcal oil fired hot air furnace |
||
Product Description
RLY(RLQ) Series Oil(gas) Burnt Hot Air Furnace for chemical industry, food industry in CS /SUS304 /SUS310S
Application
The furnace is widely used in Metal surface covering, coating the Medicine, Grain processing, Foodstuff, Wood processing and Textile, printing and dyeing in Chemical industry, Automobile and so on.
Product parameters
|
Spec |
Heat capacity provided |
Heating temperature ℃ |
Direct-fired heat efficiency | Indirect-fired heat efficiency | Oil consumption (kg/h) | Air consumptio (m3/h) | |
| 104kg/h | 104kcal/h | ||||||
| RLY/RLQ-1 | 4.2 | 1 | 60~500 | ≥95% | ≥75% | 1.05 | 1.3 |
| RLY/RLQ-4 | 16.8 | 4 | 60~500 | ≥95% | ≥75% | 4.2 | 5.2 |
| RLY/RLQ-10 | 41.8 | 10 | 60~500 | ≥95% | ≥75% | 10.5 | 13 |
| RLY/RLQ-20 | 84 | 20 | 60~500 | ≥95% | ≥75% | 21 | 26 |
| RLY/RLQ-30 | 125 | 30 | 60~500 | ≥95% | ≥75% | 31.5 | 39 |
| RLY/RLQ-40 | 167 | 40 | 60~500 | ≥95% | ≥75% | 42 | 52 |
| RLY/RLQ-60 | 251 | 60 | 60~500 | ≥95% | ≥75% | 63 | 78 |
| RLY/RLQ-80 | 334 | 80 | 60~500 | ≥95% | ≥75% | 84 | 104 |
| RLY/RLQ-100 | 418 | 100 | 60~500 | ≥95% | ≥75% | 105 | 130 |
| RLY/RLQ-120 | 502 | 120 | 60~500 | ≥95% | ≥75% | 126 | 156 |
| RLY/RLQ-180 | 752 | 180 | 60~500 | ≥95% | ≥75% | 189 | 234 |
| RLY/RLQ-200 | 836 | 200 | 60~500 | ≥95% | ≥75% | 210 | 260 |
| RLY/RLQ-300 | 1254 | 300 | 60~500 | ≥95% | ≥75% | 315 | 390 |
| RLY/RLQ-400 | 1672 | 400 | 60~500 | ≥95% | ≥75% | 420 | 520 |
| RLY/RLQ-500 | 2090 | 500 | 60~500 | ≥95% | ≥75% | 525 | 650 |
Product details
| Material: | SUS316/SUS304/ CS, etc. | Heating Source: | Steam / Natural Gas / Diesel / Etc; |
| Temp: | 120-700℃ | Capacity: | 300,000-7,000,000kcal |
| Control: | HMI & BUTTON | Burner: | Customized |
As heating resource for a set of flash dryer:
Burner remark
The fuel is burnt at firebox and the high temperature is produced. The quantity of heat will conduct to air to be heated through heat exchange device. Through heat exchange, the temperature of air is dropped to less than 250 ℃ and the air will be discharged. The air to be heated is sent to hot air furnace through distribution blow fan. After absorbed heat to the rated value, the air will be sent from the vent of hot air. When the temperature of hot air reaches the rated upper limit, the burner can stop or turn to small fire automatically. When the temperature of hot air drops to the rated low limit, the burner can burn or turn to big fire automatically. For the hot air furnace, it has two types: direct-burnt type and indirect-burnt type based on the heating way.

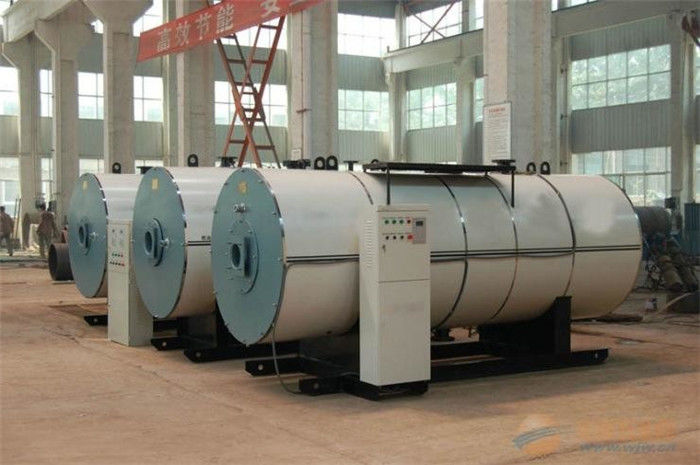

Work site for Oil(gas) Burnt Hot Air Furnace
Process description
The fuel is burnt at firebox and the high temperature is produced. The quantity of heat will conduct to air to be heated through heat exchange device. Through heat exchange, the temperature of air is dropped to less than 250.C and the air will be discharged. The air to be heated is sent to hot air furnace through distribution blow fan. After absorbed heat to the rated value, the air will be sent from the vent of hot air. When the temperature of hot air reaches the rated upper limit, the burner can stop or turn to small fire automatically. When the temperature of hot air drops to the rated low limit, the burner can burn or turn to big fire automatically. For the hot air furnace, it has two types: direct-burnt type and indirect-burnt type based on the heating way.
Installation drawing
